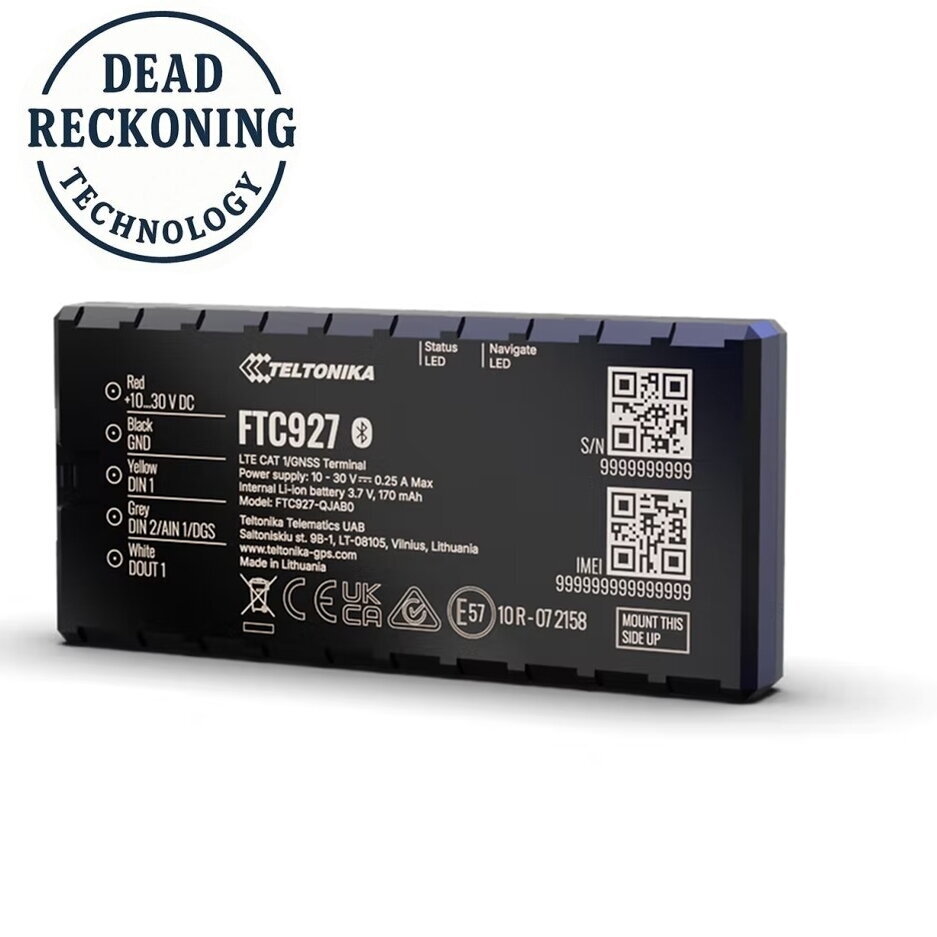

GPS TRACKER FTC927 Teltonika

Next-generation 4G LTE Cat 1 vehicle GPS tracker with dead reckoning, enhanced GNSS accuracy, and Bluetooth connectivity.

The Teltonika FTC927 is a next-generation 4G LTE Cat 1 GPS tracker designed for professional vehicle tracking and fleet management. Featuring advanced Dead Reckoning technology, enhanced GNSS accuracy, and Bluetooth 5.4 LE connectivity, it ensures reliable and precise tracking even in challenging environments.

Key Features

• Dead Reckoning
• Continuous vehicle tracking when GNSS signal is unavailable, including tunnels, underground parking garages, urban canyons, and remote areas.

Higher GNSS Accuracy

• Supports GPS, GLONASS, Galileo, and BeiDou satellite systems.
• Up to 41 visible satellites for improved positioning accuracy.
• Position accuracy: < 1.8 m CEP.

Extended Product Usage Scenarios

• Bluetooth® 5.4 Low Energy connectivity for wireless accessories.
• Compatible with BLE beacons and sensors for monitoring:
• Temperature
• Humidity
• Magnet detection
• Movement
• Longer Performance, Lower Battery Drain
• Optimised sleep modes extend operating time and significantly reduce vehicle battery consumption while parked.

Properties

• Technology
• LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH
• GNSS
• GNSS
• GPS, GLONASS, GALILEO, BEIDOU

Receiver

• L1: 75 channel
• Tracking sensitivity
• -165 dBM
• Position Accuracy
• < 1.8 m CEP
• Velocity Accuracy
• < 0.1 m/s (within +/- 15% error)
• Hot start
• < 1 s
• Warm start
• < 25 s
• Cold start
• < 35 s
• Cellular
• Technology
• LTE CAT 1/GSM
• 2G bands
• FTC927-QJAB0: GSM: B2/B3/B5/B8
• FTC927-QKAB0: GSM: B2/B3/B5/B8
• 4G LTE bands
• FTC927-QJAB0: LTE FDD: B1/B3/B5/B7/B8/B20/B28
• FTC927-QKAB0: LTE FDD: B2/B3/B4/B5/B7/B8/B28/B66
• Data transfer
• LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)
• GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)

Transmit power

• Class 4 for GSM850/900: 33 dBm ±2dB
• Class 1 for GSM1800/1900: 30 dBm ±2dB
• Class 3 for LTE-FDD: 23 ±2dB

Data support

• SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, EGTS, MQTT)
• Data codec
• Codec support
• Codec 8 Extended
• Power
• Internal Back-up battery
• 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
• Internal fuse
• 3A, 125V

Power consumption

• At 12V < 25 mA (nominal with no load)
• At 12V < 0.25A Max (with full Load/Peak)
• Bluetooth Technology
• Specification 5.4 + LE
• Supported peripherals
• EYE beacon and sensor
• Physical specification
• Dimensions 93*43*12.5 mm
• Weight 65 g
• Operating environment
• Operating temperature (without battery)
• -40°C to +85 °C
• Storage temperature (without battery)
• -40°C to +85 °C
• Operating temperature (with battery)
• 0 °C to +45 °C
• Storage temperature (with battery)
• -20 ℃ to 25 ℃ for up-to 3 months
• ≤25℃ for long-term storage
• Operating humidity
• 5% to 95% non-condensing
• Ingress Protection Rating IP41
• Battery charge temperature 0 °C to +45 °C

Battery discharge temperature

• Battery storage temperature
• -20 °C to +35 °C for 6 months
• Interface
• Digital Inputs 1
• Digital Outputs 1
• Analog Inputs 1
• GNSS antenna
• Internal High Gain
• Cellular antenna
• Internal High Gain
• USB 2.0 USB Type-C
• LED indication
• 2 status LED lights
• Nano-SIM
• 128MB internal flash memory
• Sensors
• Accelerometer and Gyroscope

Scenarios

• Over Speeding detection, Jamming detection, Unplug detection, Trip
• Sleep modes
• Online sleep, Deep sleep, Power off sleep
• Configuration and firmware update
• FOTA WEB, Teltonika Configuration Tool (TCT)
• SMS
• Configuration, DOUT control, Debug
• GPRS commands
• Configuration, DOUT control, Debug
• Time Synchronization
• GNSS, NITZ, NTP
• Ignition detection
• Digital Input 1, Accelerometer, External Power Voltage

Certification & approvals

• Regulatory
• FTC927-QJAB0: CE/RED, E-Mark, RCM, RoHS, REACH

Set of equipment

• GPS TRACKER FTC927 Teltonika
• 1 pcs. of Input/Output power supply cable
• Server/SIM card (optional, available for an additional fee)

Warranty: 24 months
