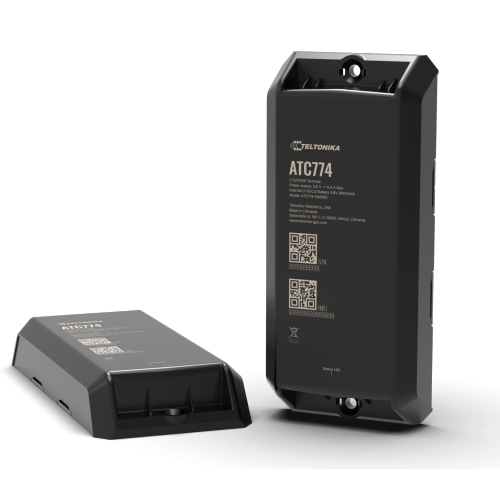

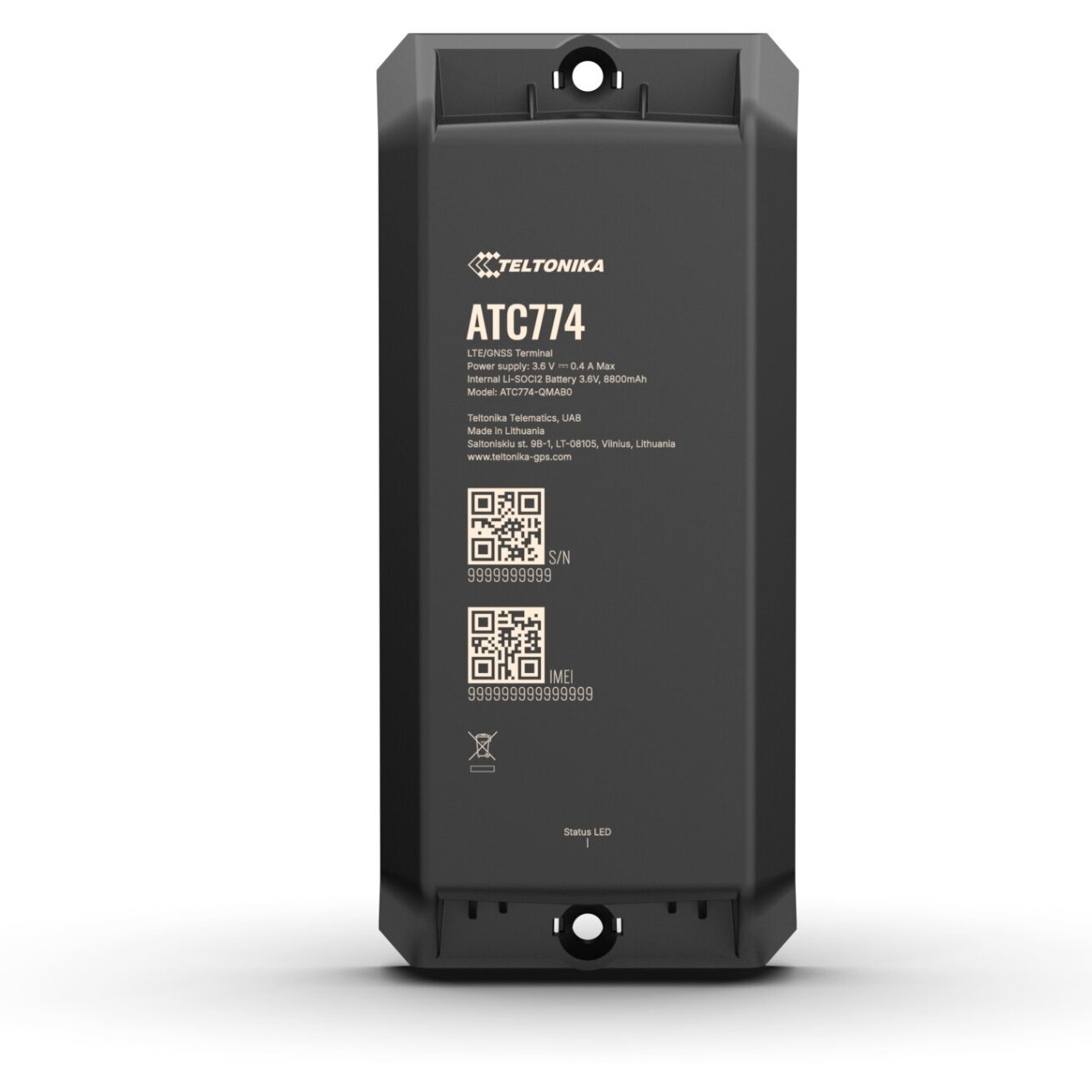

ATC774 4G TELTONIKA GPS TRACKER

Battery-powered 4G LTE Cat 1 asset tracker designed for long-term deployments.

Properties

• Long-term operation
• Flexible battery options
• Various tracking modes

Long-term operation
Up to 10 years of battery life, supporting uninterrupted device deployments

Flexible battery options
Select devices with primary or rechargeable batteries, depending on your use case

Reliable operation, effortless installation
Protection in extreme weather conditions and fast device set-up without any wires

Technology

• LTE CAT 1/GNSS/BLUETOOTH® LE
• GNSS
• GNSS
• GPS, GLONASS, GALILEO, BEIDOU
• Receiver
• 135 tracking/acquisition channels
• Tracking sensitivity
• -165 dBM
• Position Accuracy
• < 1.8 m CEP
• Hot start
• < 1 s
• Warm start
• < 25 s
• Cellular
• Technology
• LTE CAT 1
• 4G LTE bands
• ATC774-QMA50 / ATC774-QMA51:
• LTE FDD(CAT 1): B1/B3/B5/B7/B8/B20/B28
• ATC774-QNA50 / ATC774-QNA51:
• LTE FDD(CAT 1): B2/B3/B4/B5/B7/B8/B28/B66
• Data transfer
• LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)
• Transmit power
• Class 3 for LTE-FDD: 23±2dBM
• Data support
• SMS (TEXT, PDU), Network protocols (TCP, UDP)
• Data codec
• Codec support
• Codec 8 Extended
• Power
• Internal battery
• ATC774-QMA50: Primary, 8800mAh Li-SOCl2, 3.6V (32.56 Wh)
• ATC774-QMA51: Rechargeable, 3200 mAh Li-Ion, 3.7V (11.84 Wh)
• ATC774-QNA50: Primary, 8800mAh Li-SOCl2, 3.6V (32.56 Wh)
• ATC774-QNA51: Rechargeable, 3200 mAh Li-Ion, 3.7V (11.84 Wh)
• Bluetooth® Technology
• Specification
• 5.3 + LE*
• EYE sensors and EYE beacons support*
• *Development in progress
• Dimensions
• 156 x 70 x 25.2 mm
• Weight
• ATC774-QMA50 / ATC774-QMA51: 251g
• ATC774-QNA50 / ATC774-QNA51: 253g
• Operating environment
• Operating temperature
• -20 °C to +60 °C
• Storage temperature (with battery)
• ATC774-QMA51 / ATC774-QNA51:
• ≤ 1 month: -20 °C to +45 °C
• ≤ 3 months: -20 °C to +35 °C
• ≤ 1 year: -20 °C to +25 °C
• ATC774-QMA50 / ATC774-QNA50:
• Up to +30 °C
• Operating humidity
• 5% to 95% non-condensing
• Ingress Protection Rating
• IP68
• Battery charge temperature
• ATC774-QMA51: 0 °C to +45 °C
• ATC774-QNA51: 0 °C to +45 °C
• Battery discharge temperature
• ATC774-QMA50: -60 °C to +85 °C
• ATC774-QMA51: -10 °C to +60 °C
• ATC774-QNA50: -60 °C to +85 °C
• ATC774-QNA51: -10 °C to +60 °C
• Battery storage conditions
• ATC774-QMA51 / ATC774-QNA51:
• ≤ 1 month: -20 °C to +45 °C
• ≤ 3 months: -20 °C to +35 °C
• ≤ 1 year: -20 °C to +25 °C
• ATC774-QMA50 / ATC774-QNA50:
• Up to +30 °C
• Interface
• GNSS antenna
• Internal High Gain
• Cellular antenna
• Internal High Gain
• USB
• 2.0 USB Type-C
• LED indication
• 1 status RGB LED light
• SIM
• Nano-SIM
• Memory
• 16MB internal flash memory
• Features
• Sensors
• Accelerometer
• Scenarios
• Periodic tracking, Movement-based tracking, Scheduler

Sleep modes

• Custom sleep mode
• Configuration and firmware update
• FOTA WEB, Telematics Configuration Tool (TCT)
• Time Synchronization
• GNSS, NITZ, NTP

Certification & approvals

• Regulatory
• CE RED, UKCA, RCM, E-Mark (pending)

Set of equipment

• GPS TRACKER ATC774 4GTeltonika;
• Server/SIM card for extra charge;
• Directions for use in English language;

Warranty: 24 months;

Fast delivery.
